| range of product | Harmony XB4 |
|---|---|

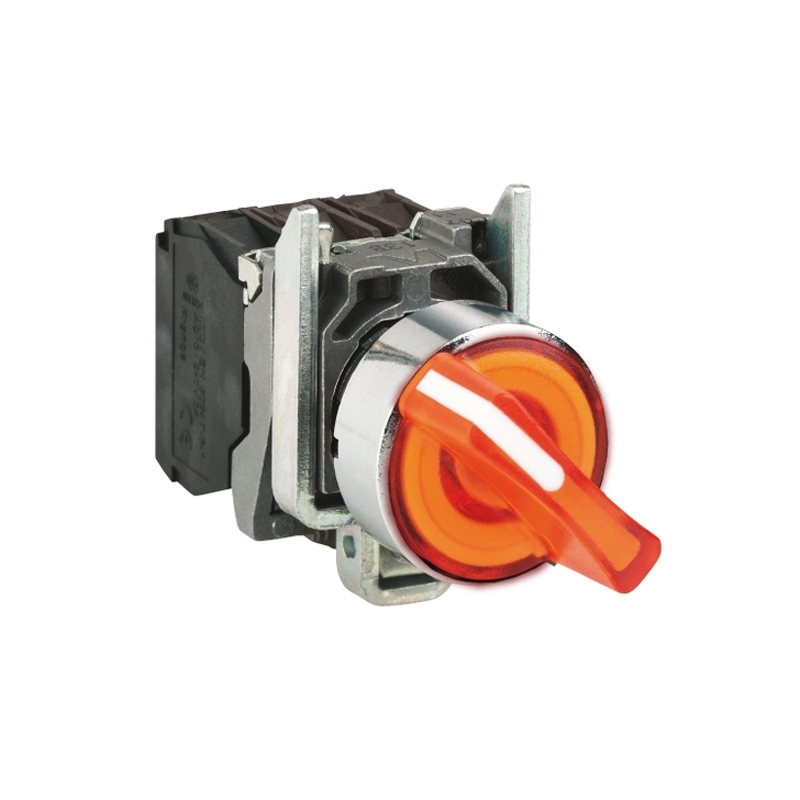

| product or component type | Illuminated selector switch |
| device short name | XB4 |
| bezel material | Chromium plated metal |
| fixing collar material | Zamak |
| head type | Standard |
| mounting diameter | 22 mm |
| sale per indivisible quantity | 1 |
| shape of signaling unit head | Round |
| type of operator | Stay put |
| operator profile | Orange standard handle |
| operator position information | 2 positions 90° |
| contacts type and composition | 1 NO + 1 NC |
| contact operation | Slow-break |
| connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN/IEC 60947-1 |
| light source | Protected LED |
| bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
height 47 mm width 30 mm depth 68 mm terminals description ISO n°1 (13-14)NO
(21-22)NCnet weight 0.111 kg resistance to high pressure washer 7000000 Pa at 55 °C, distance : 0.1 m contacts usage Standard contacts positive opening With conforming to EN/IEC 60947-5-1 appendix K operating torque 0.14 N.m NO changing electrical state mechanical durability 1000000 cycles tightening torque 0.8…1.2 N.m conforming to EN 60947-1 shape of screw head Cross compatible with Philips no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted compatible with flat Ø 4 mm screwdriver
Slotted compatible with flat Ø 5.5 mm screwdrivercontacts material Silver alloy (Ag/Ni) short-circuit protection 10 A cartridge fuse type gG conforming to EN/IEC 60947-5-1 [Ith] conventional free air thermal current 10 A conforming to EN/IEC 60947-5-1 [Ui] rated insulation voltage 600 V (pollution degree 3) conforming to EN 60947-1 [Uimp] rated impulse withstand voltage EN 60947-1 6 kV [Ie] rated operational current 3 A at 240 V, AC-15, A600 conforming to EN/IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN/IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
0.55 A at 125 V, DC-13, Q600 conforming to EN/IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN/IEC 60947-5-1electrical durability 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
1000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
1000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
1000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix C
1000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to EN 60947-5-1 appendix Celectrical reliability Λ < 10exp(-6) at 5 V and 1 mA in clean environment conforming to EN/IEC 60947-5-4
Λ < 10exp(-8) at 17 V and 5 mA in clean environment conforming to EN/IEC 60947-5-4signalling type Steady supply voltage limits 19.2…30 V DC
21.6…26.4 V ACcurrent consumption 18 mA service life 100000 h at rated voltage and 25 °C surge withstand 1 kV conforming to IEC 61000-4-5 device presentation Complete product protective treatment TH ambient air temperature for storage -40…70 °C ambient air temperature for operation -40…70 °C electrical shock protection class Class I conforming to IEC 60536 IP degree of protection IP66 conforming to IEC 60529
IP67
IP69
IP69KNEMA degree of protection NEMA 13
NEMA 4XIK degree of protection IK06 conforming to IEC 50102 standards UL 508
EN/IEC 60947-5-5
EN/IEC 60947-5-1
EN/IEC 60947-1
JIS C8201-5-1
EN/IEC 60947-5-4
CSA C22.2 No 14
JIS C8201-1product certifications LROS (Lloyds register of shipping)
CSA
UL
GL
BV
DNVvibration resistance 5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6 shock resistance 30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27resistance to fast transients 2 kV conforming to IEC 61000-4-4 resistance to electromagnetic fields 10 V/m conforming to IEC 61000-4-3 resistance to electrostatic discharge 6 kV on contact (on metal parts) conforming to IEC 61000-4-2
8 kV in free air (in insulating parts) conforming to IEC 61000-4-2electromagnetic emission Class B conforming to IEC 55011 Unit Type of Package 1 PCE Number of Units in Package 1 1 Package 1 Weight 111 g Package 1 Height 8.6 cm Package 1 width 5.2 cm Package 1 Length 3.3 cm Unit Type of Package 2 BB1 Number of Units in Package 2 5 Package 2 Weight 555 g Package 2 Height 8.6 cm Package 2 width 26.5 cm Package 2 Length 3.3 cm Unit Type of Package 3 S03 Number of Units in Package 3 100 Package 3 Weight 11.57 kg Package 3 Height 30 cm Package 3 width 30 cm Package 3 Length 40 cm Sustainable offer status Green Premium product REACh Regulation REACh Declaration REACh free of SVHC Yes EU RoHS Directive Pro-active compliance (Product out of EU RoHS legal scope)EU RoHS Declaration Mercury free Yes RoHS exemption information Yes China RoHS Regulation China RoHS declaration Environmental Disclosure Product Environmental Profile Circularity Profile End of Life Information WEEE The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins California proposition 65 WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov Warranty 18 months
